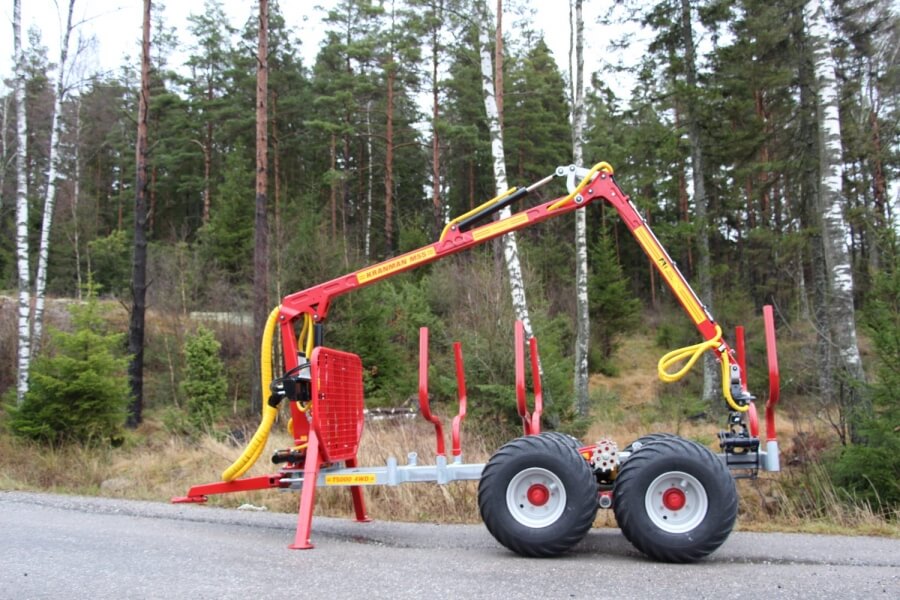

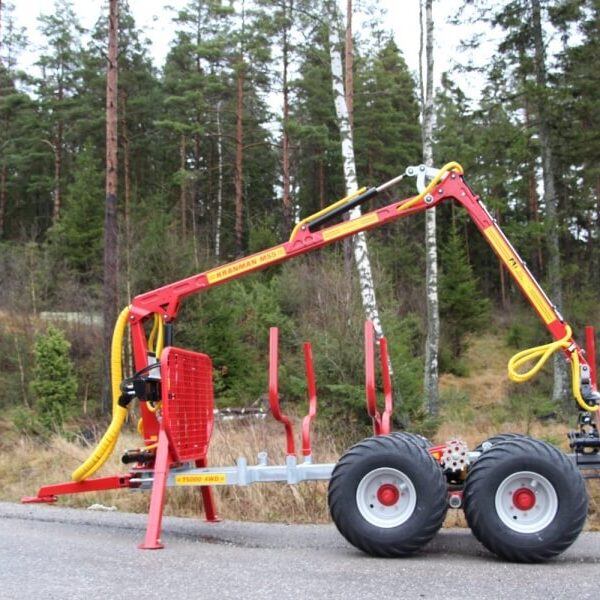

Kranman M56 is a light and flexible crane. The price includes the grapple, rotator and 6-lever valve package. Gate and support legs are added to the price.
Crane M56
Art. no M56
Specification
| Length | 5.5 m |
| System pressure | 180 bar |
| Gripper | 0,12 |
| Weight crane with support leg and gate | 535 kg |
| Lifting force (at m) including grapple and rotator | 1450 kg (1.2 m) 600 Kg (3.0 m) 420 kg (4.2 m) 390 kg (4.5 m) 210 kg (5.65 m) |
| Recommended oil flow | 20-35 l/m |
