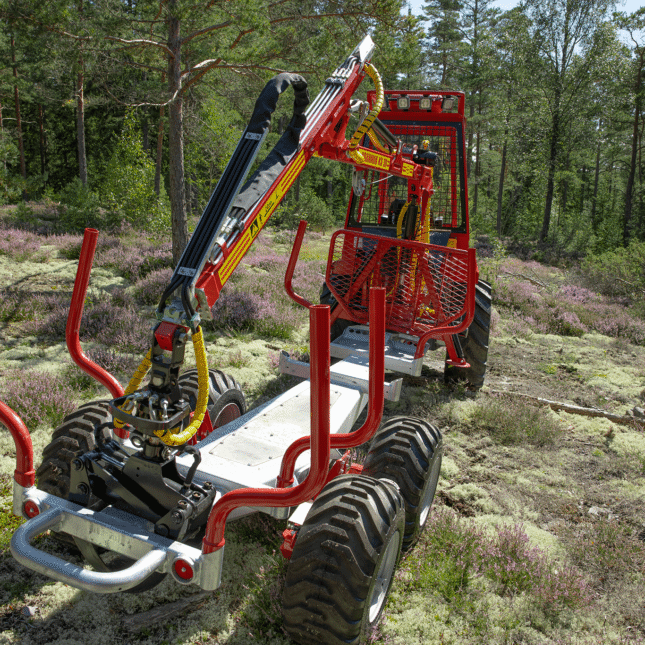

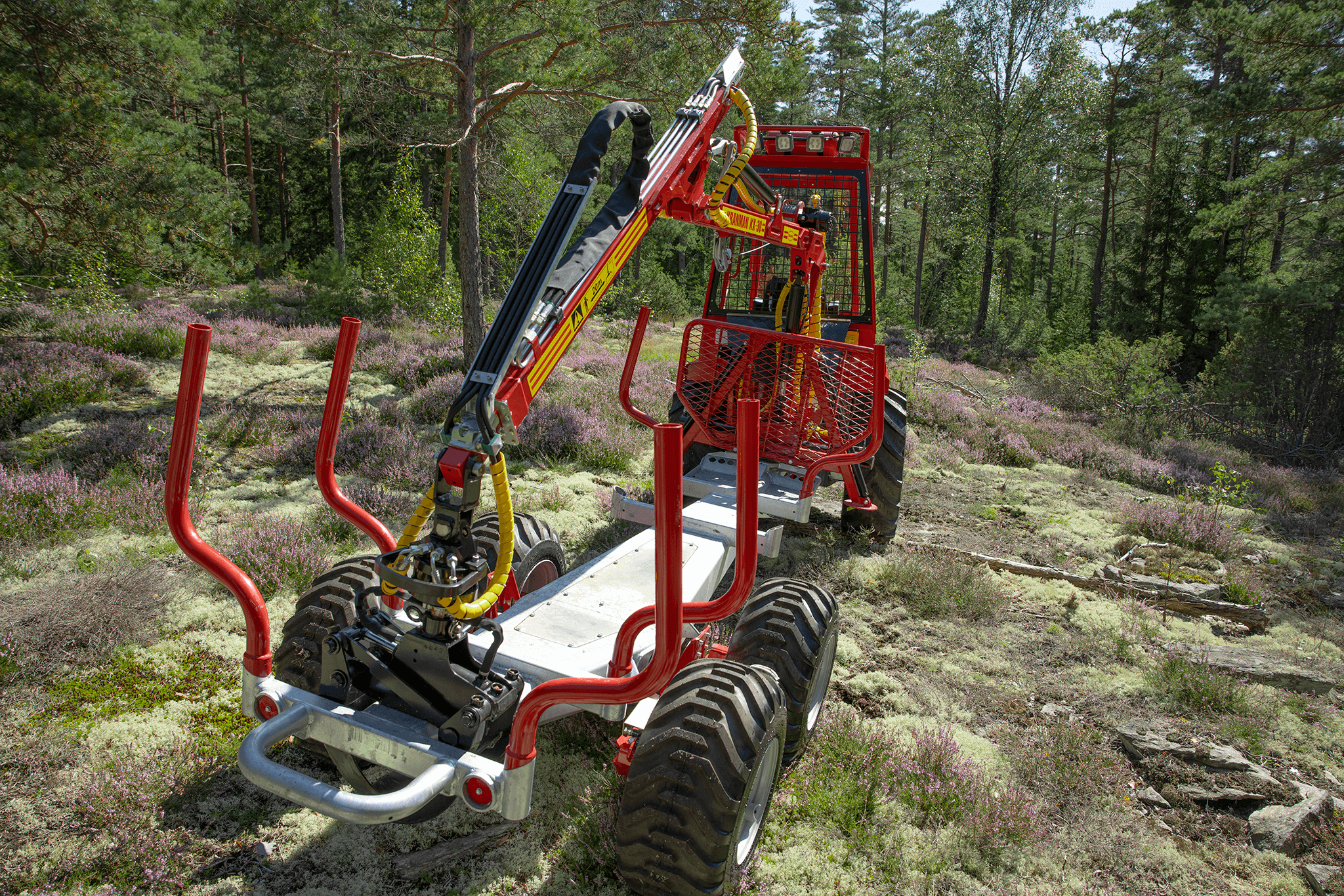

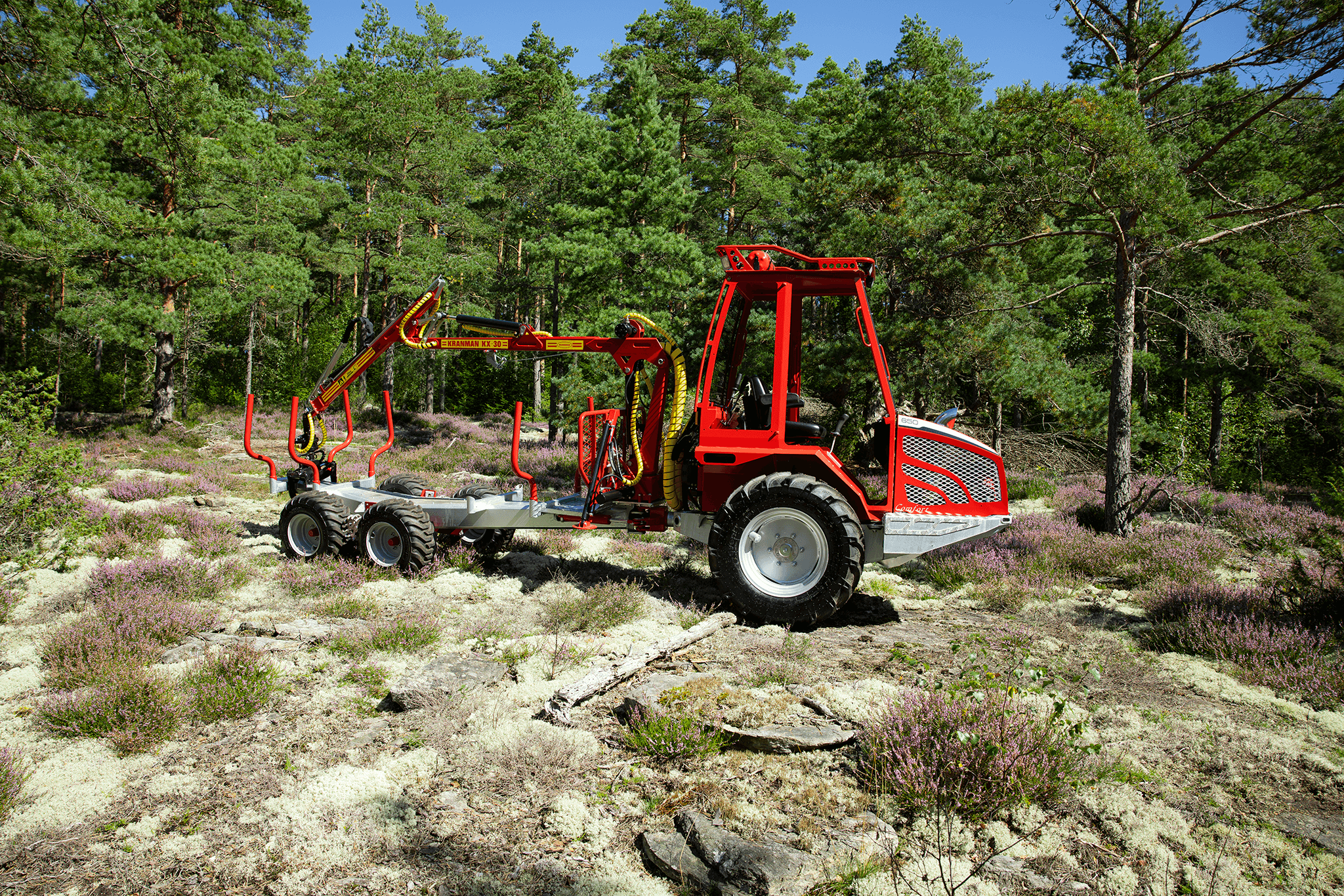

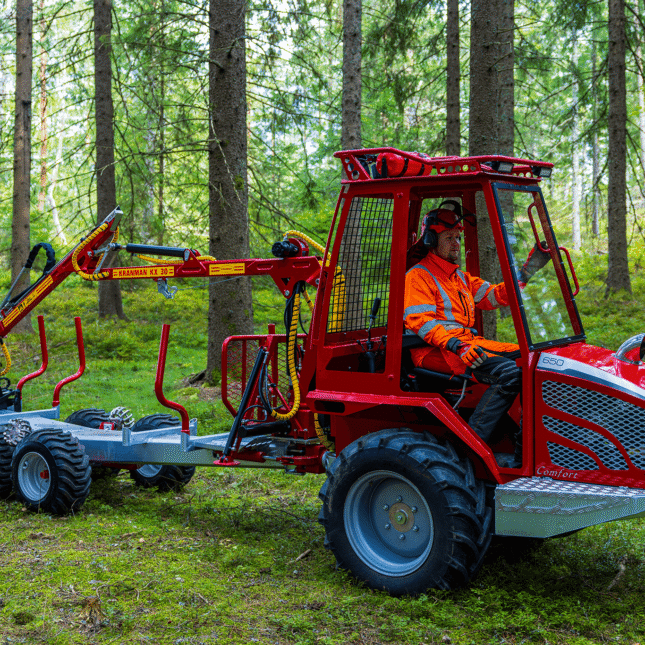

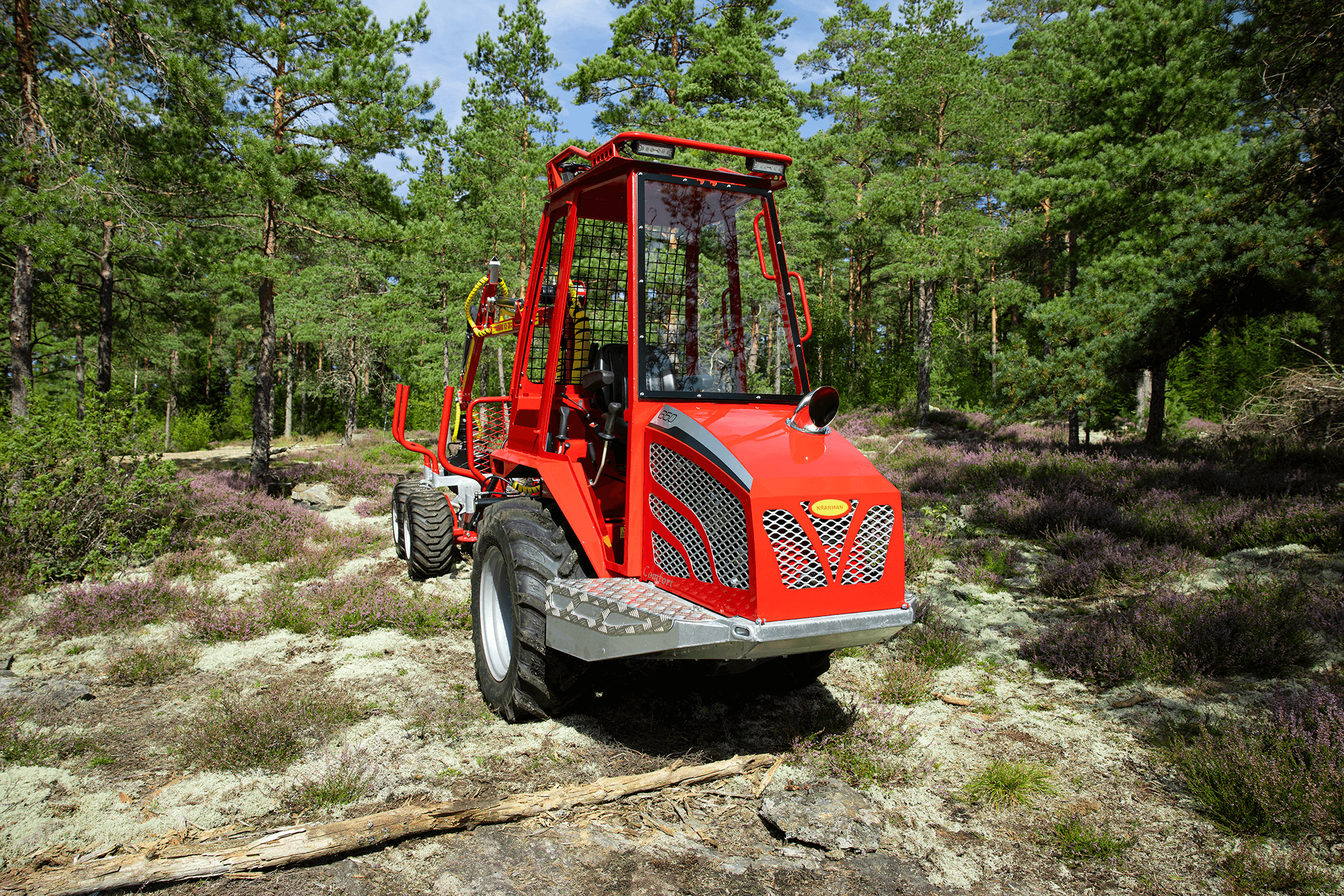

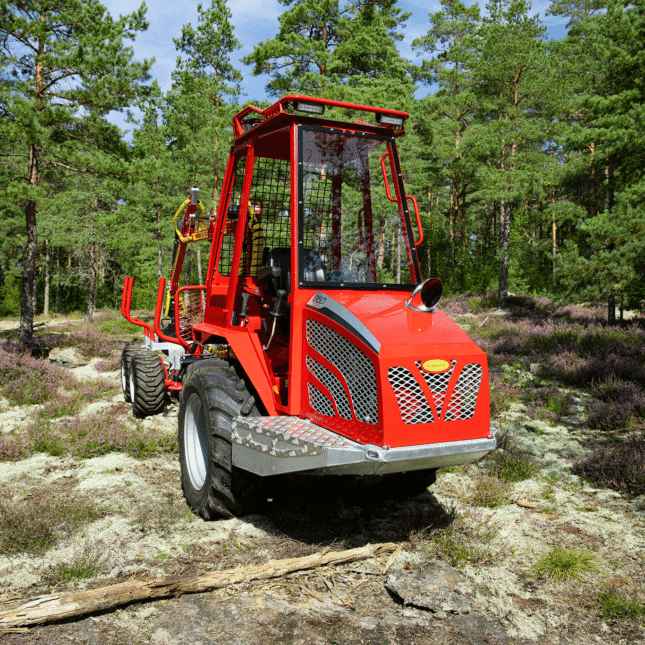

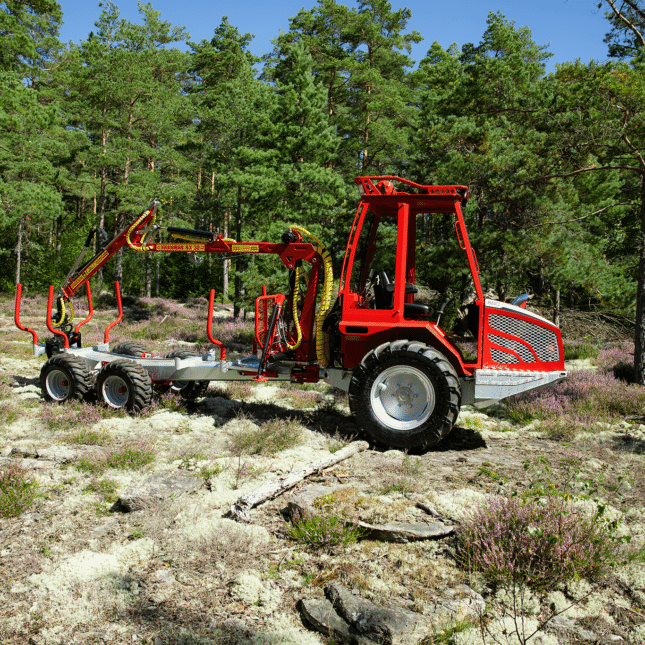

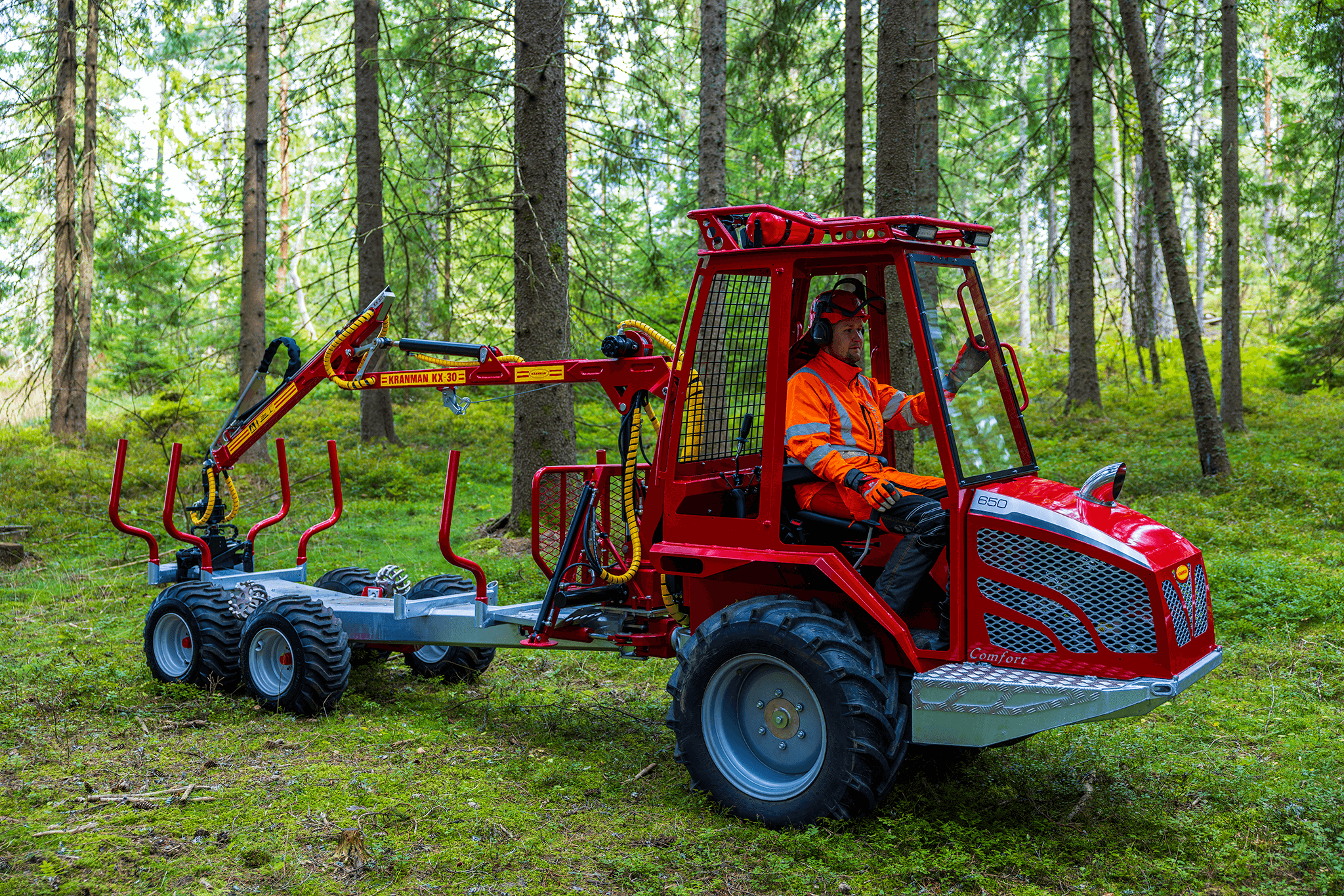

Kranman 650 forwarder

Price: 48799€ + KM

Kranman processor P25 is a durable thinning processor with well-proven solutions for the most efficient thinning in terms of soil damage, fuel consumption, personal workload and not least the final result.

Processor P25V is our processor in trailer design. The same flow and reprocessing rate are maintained, but in this form
processor is not positioned from the control panel. This is done from the machine on which the processor is mounted.

The processor has its own hydraulic system, which means that nothing needs to be connected to the machine on which the processor is applied. Maximum 60 cm mounting height.

The wagon-style processor is powered by a Honda GX630 petrol engine.

• The processor has a specially adapted 2-pump system which means that it is not sold without a motor and pump.

Processor P25 for trolley comes with relief legs that allow for easy off/unloading of the processor.

Specification

Engine model:
Engine Honda GX630,688cc, 21hp
Environmental class Step V
Max work lap 3,600rpm.
Transmission, power transmission Hydrostat
Torque
Braking system: Hydraulic vane brakes
Forward Hydraulic vane brakes
Electrical system:
Volt 12V
Battery 50Ah
Generator 18A
Lighting LED 2st 10W, 2st 30W
Specifications:
Transport gear 12km/h
Max load 2200kg
Front wheels 340/65R20
Rear wheels 26×12-12
Fule tank 24L
Fuel consumption 2,7L/h
Ground clearance 31cm
Loading area 0,9m²
Weight 1450kg
Dimensions LxWxH 600x150x250
